Location: Ramat HaSharon
Client: Maagarei Bniya
Project Manager: Eyal Sarig
Architect: Pitsou Kedem
Sector: Mixed-Use / Residenital / Office
A new-build, 9-storey mixed-use development in Ramat HaSharon, comprising residential and office spaces, with a 4-storey deep basement car park.
The structural frame is of reinforced concrete construction, with extensive use of architectural fair-faced concrete. The building is founded on an economic raft foundation, and utilizes a contiguous-piled retaining wall, with temporary ground anchors.
Kedmor have worked closely with the Architects to achieve slender flat slabs, optimized for long, column-free spans, using Sofistik advanced finite element analysis software, facilitating the irregular architectural facade. A ‘walking column’ solution was adopted at 1st floor level, to accommodate changes in the column grids, allowing for the architect's vision of a clean exposed slab soffit, without large transfer beams.

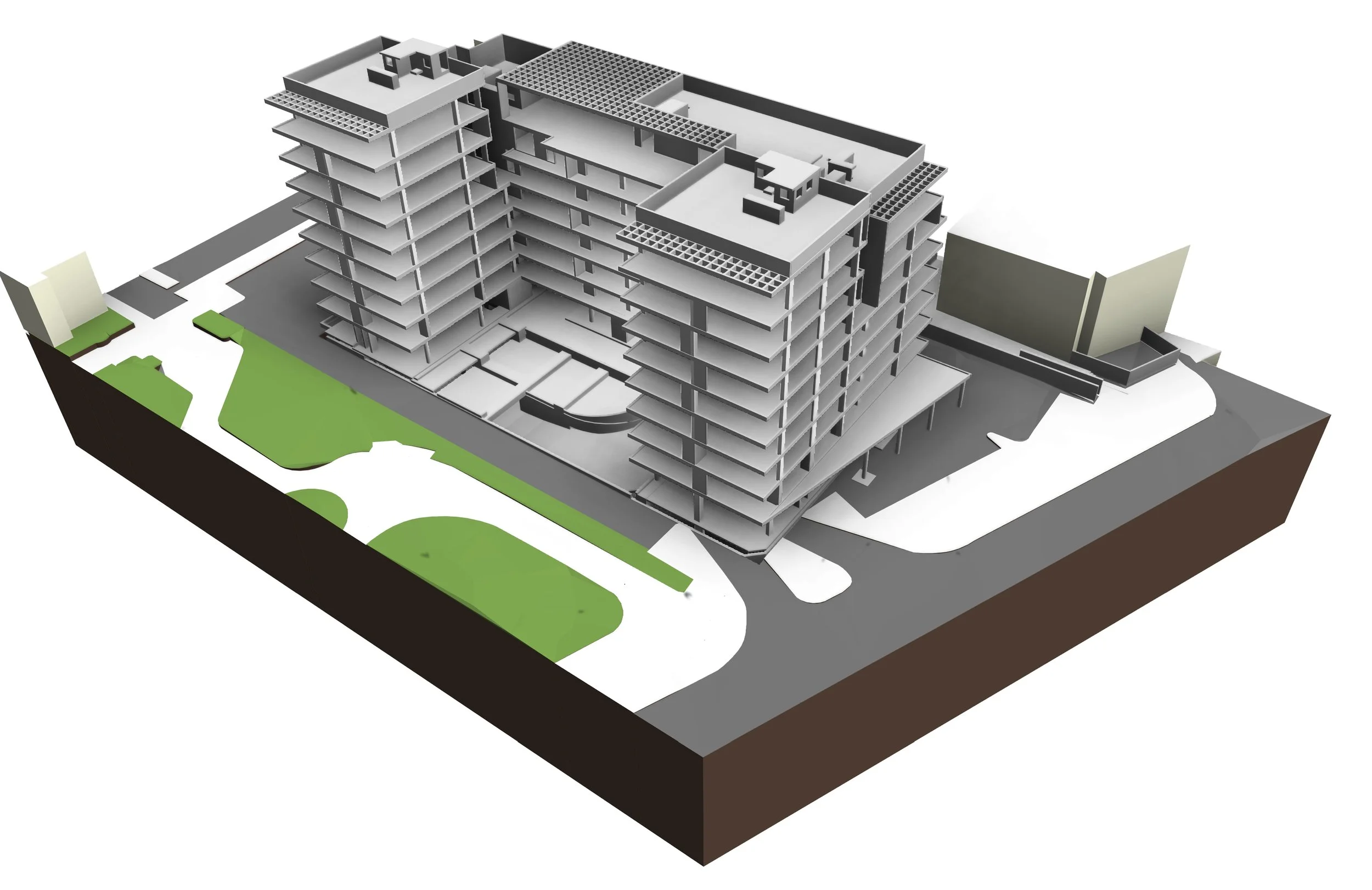

Architectural render image credit: Pitsou Kedem Architects
