Location: Acre- Karmiel, Israel
A railroad over-crossing bridge adjacent to a communication facility (which is the origin of the name) is located east of the city of Acre.
The bridge provides a way of access to an industrial park developed nearby.
The bridge structure is made of cast-in-situ concrete where the superstructure was cast and post tensioned in three stages.
The curved alignment (180 degrees turn) provides lateral stiffness on one hand while creating torsional effects on the other.
The foundations are deep drilled and cast on site concrete piles. The single-column substructure bent configuration is fixed to the superstructure slab.

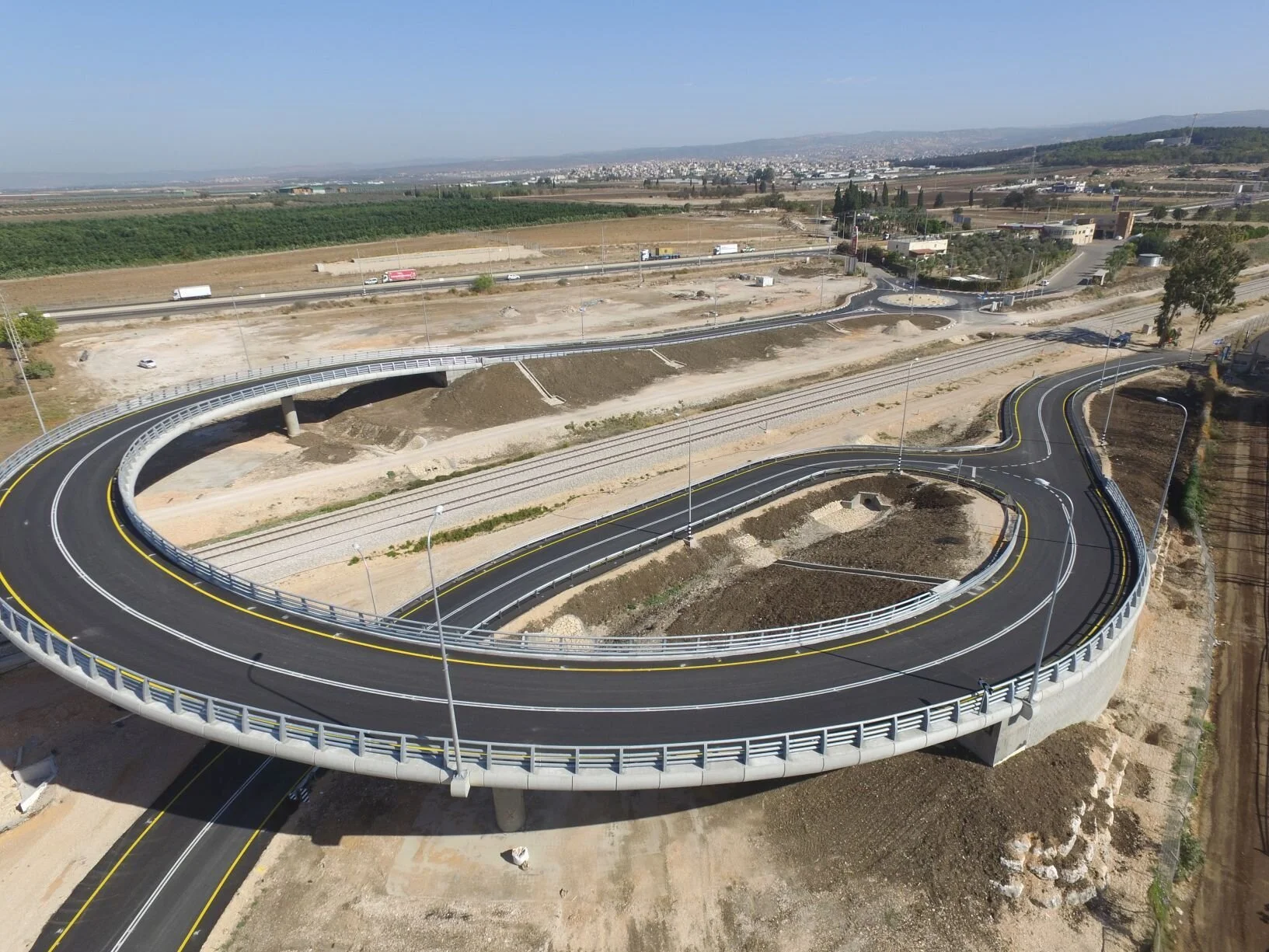

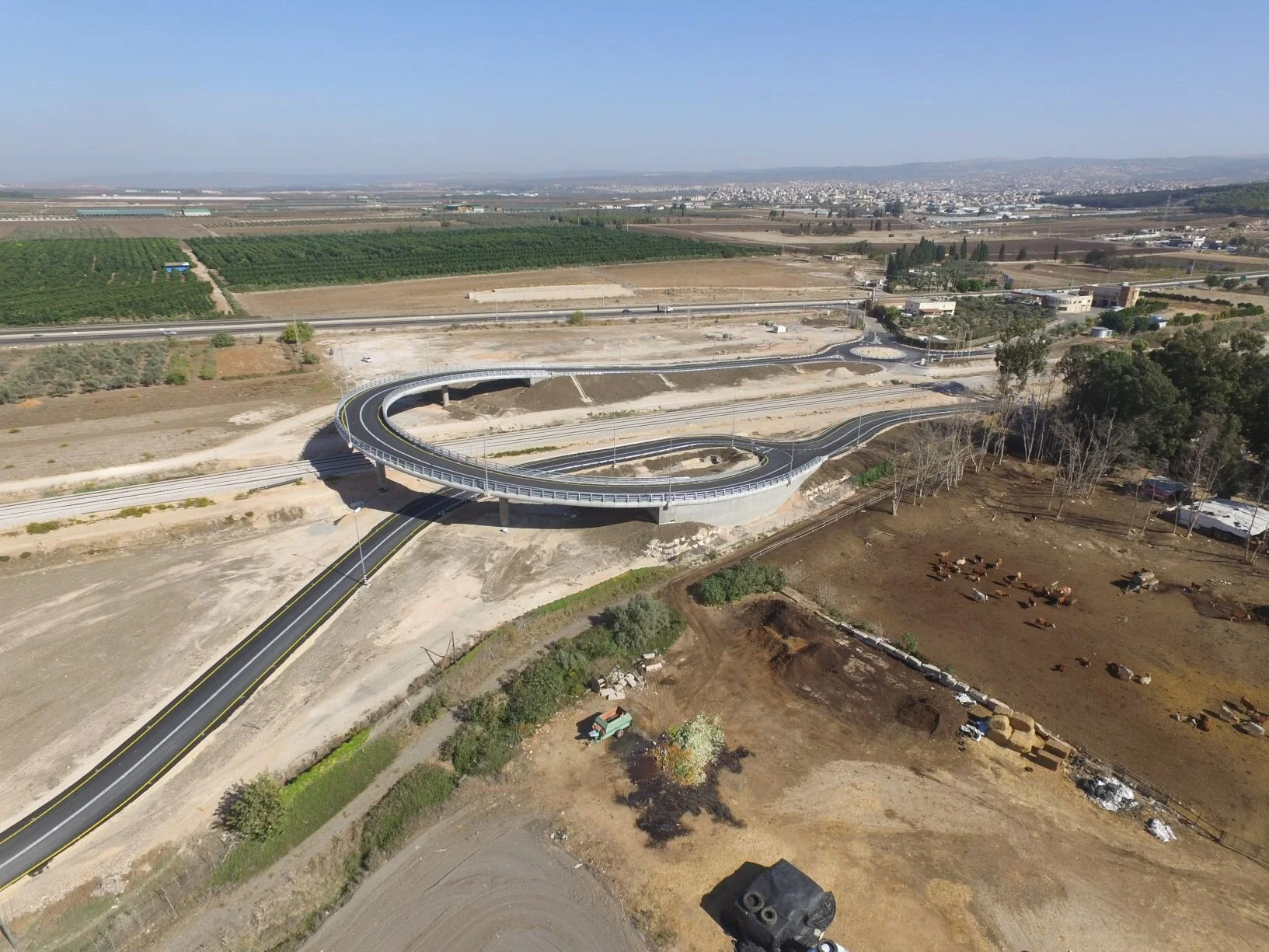

Photos and Video:
Olenik Transportion, Earth Works& Road Construction LTD.
